ADFORM - BLE PRO

Désignation : BLE PRO

Référence DMO :

Marque : ADFORM

Neuf

Sur commande



Brochure ADFORM - BLE PRO    Fiche technique ADFORM - BLE PRO


Renseignements ADFORM - BLE PRO

DESCRIPTIF

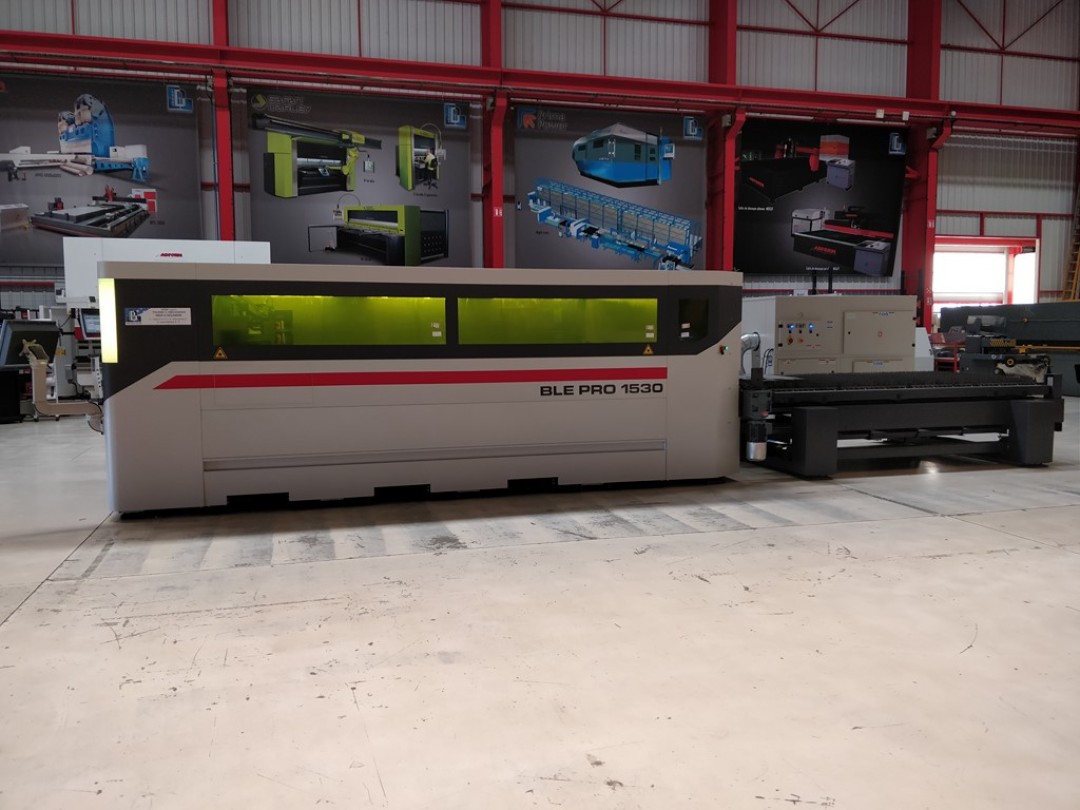

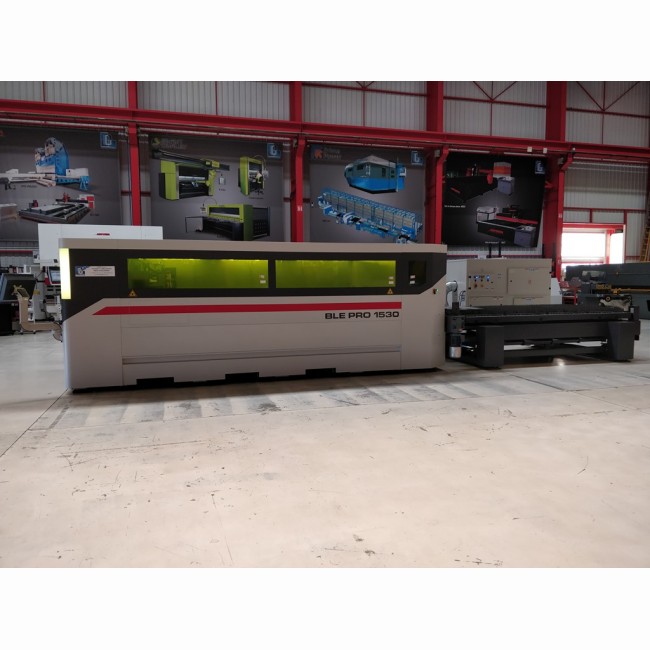

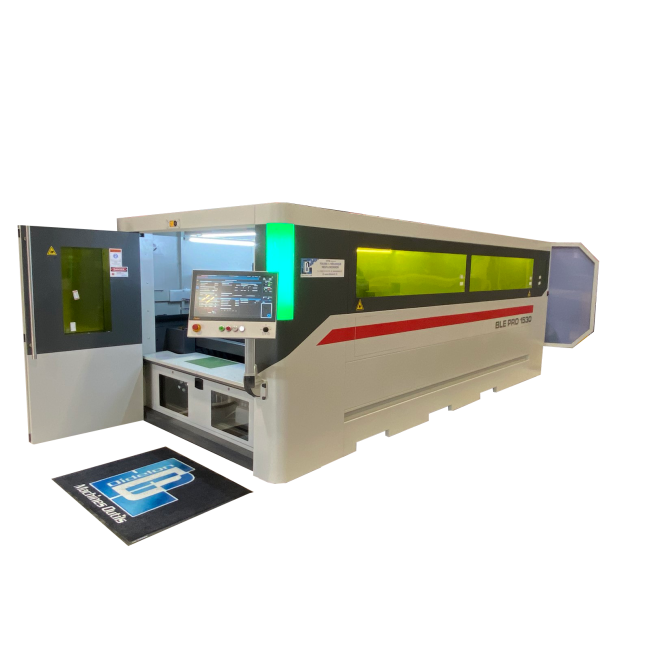

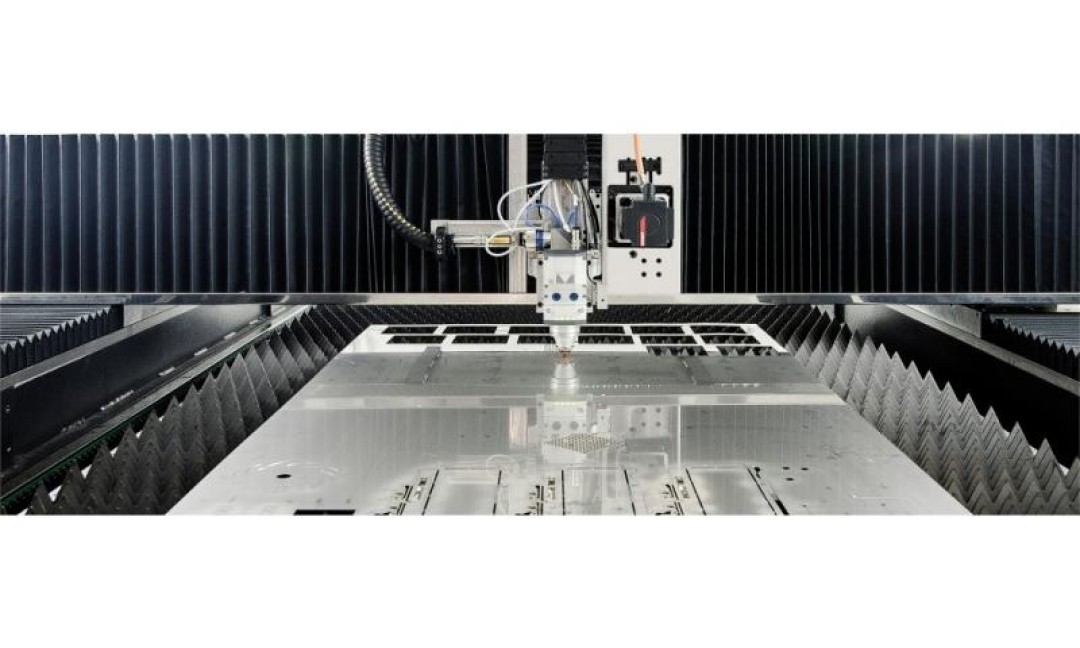

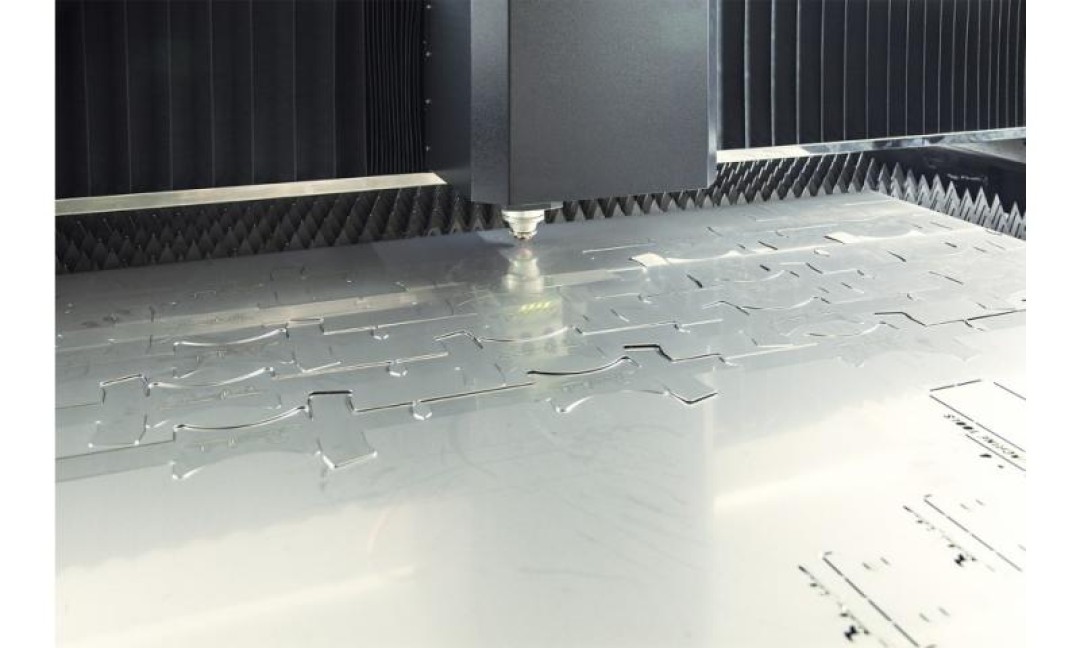

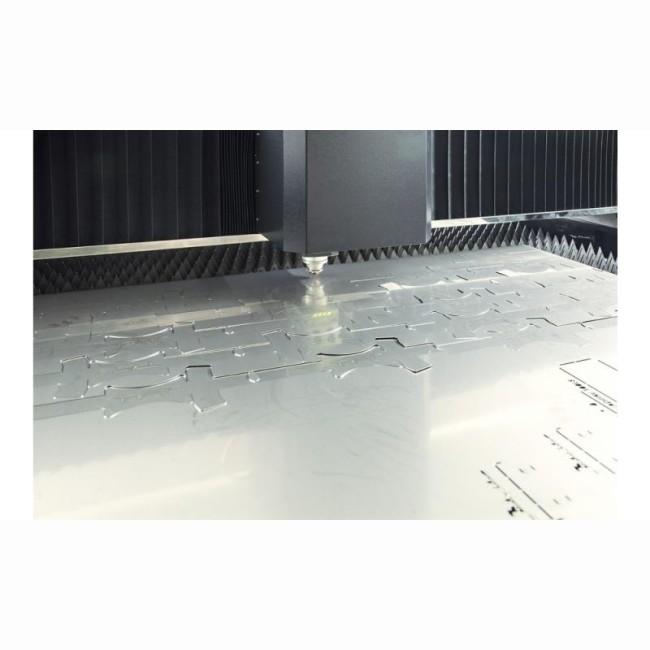

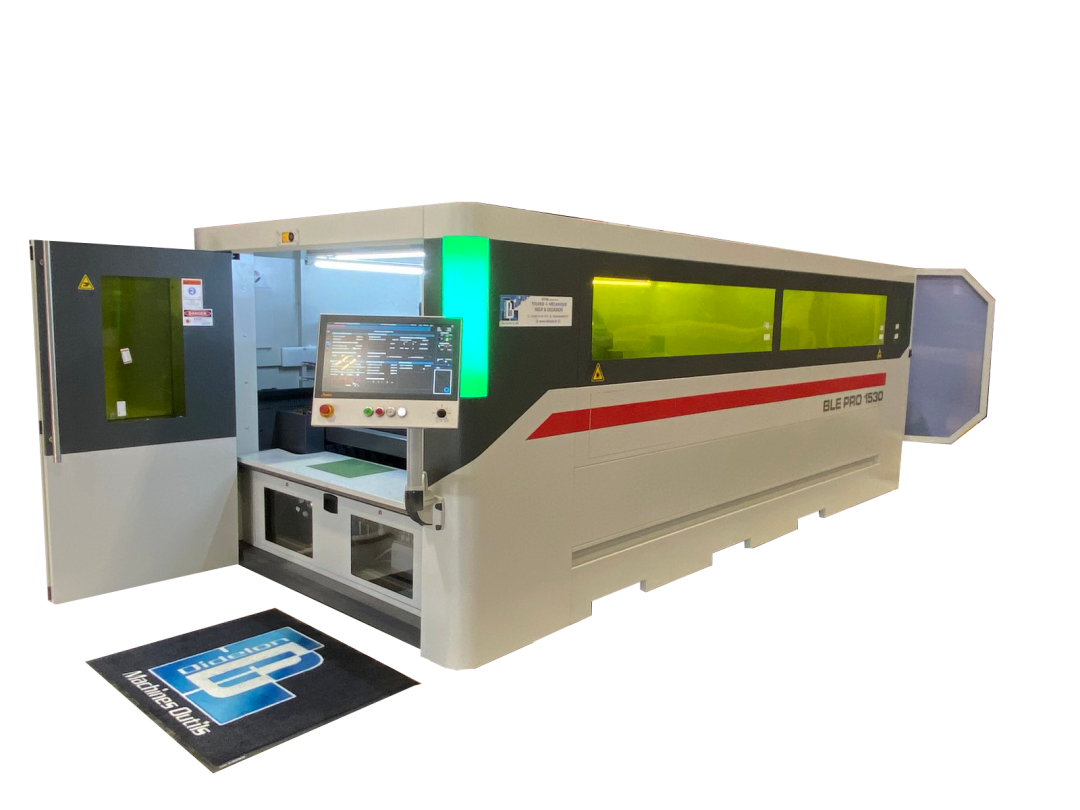

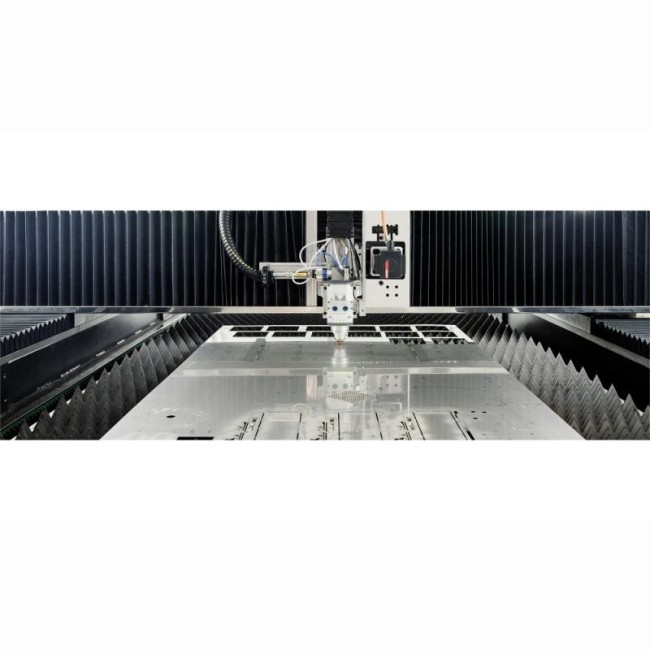

Table de découpe Laser Fibre ADFORM BLE PRO :

Le nouveau système de découpe laser fibre BLE PRO offre à l'utilisateur la meilleure solution et la plus économique en termes de qualité de découpe, de précision, de vitesses élevées, de coût réduit et de faible encombrement.

Cette machine permet de couper des plaques dans des formats de 1500 x 3000mm / 2000 x 4000mm ou encore 2000 x 6000mm, suivant le modèle choisi.

Elle se caractérise par :

  • Source laser fibre IPG de 3000W

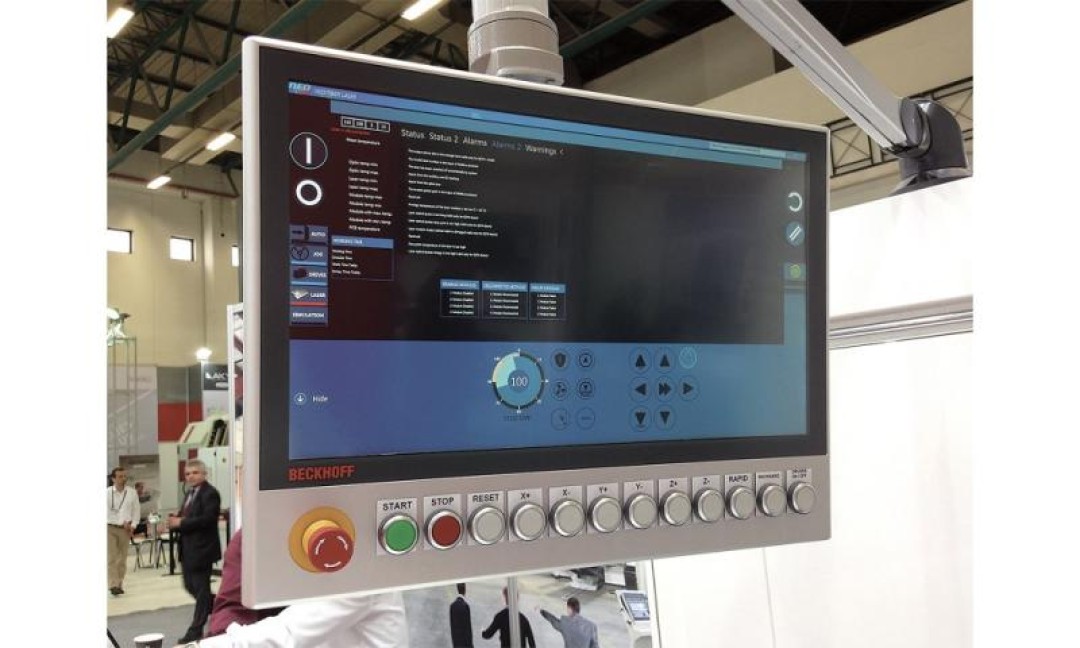

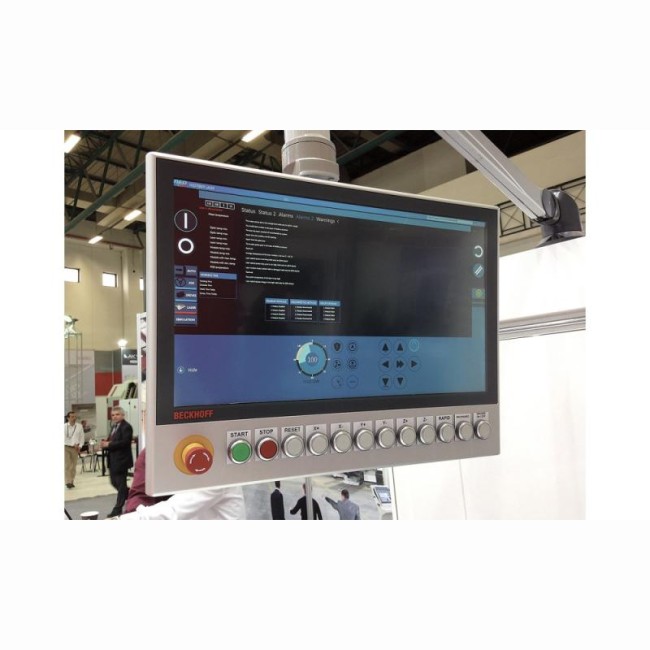

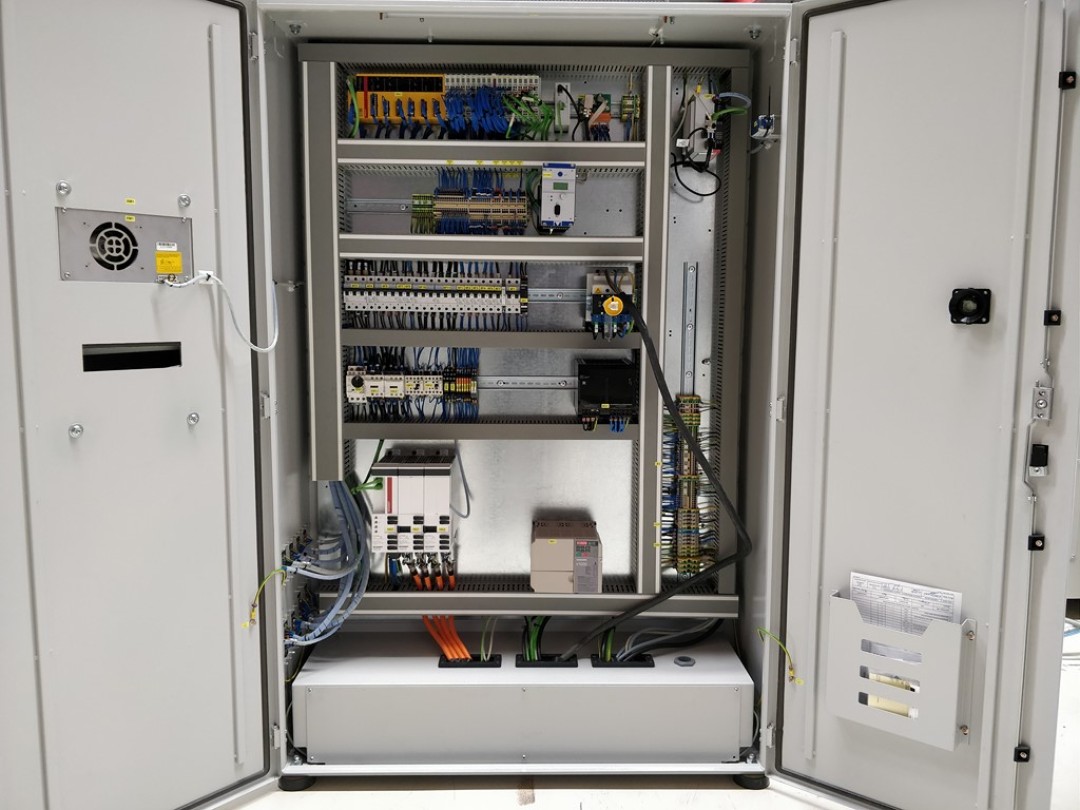

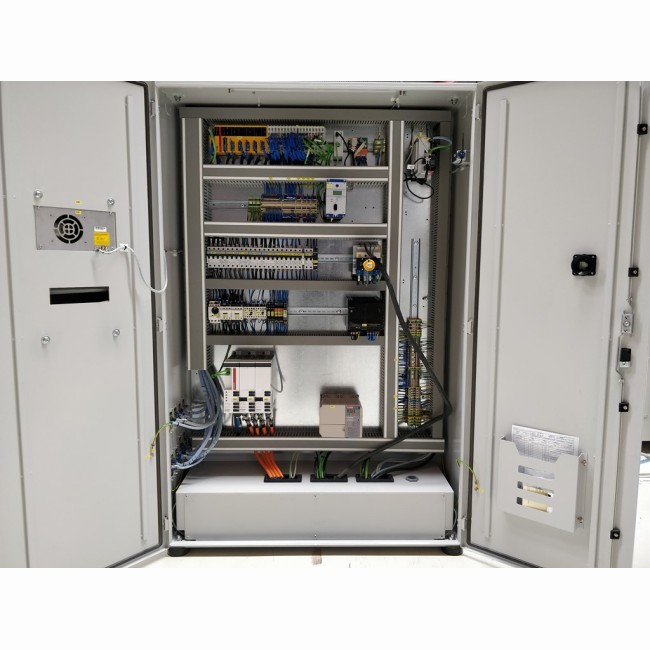

  • Commande numérique Beckhoff écran tactile

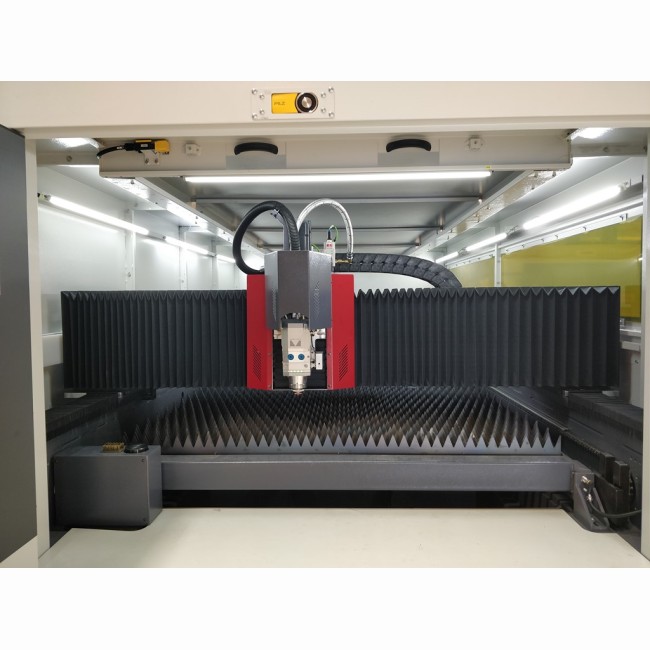

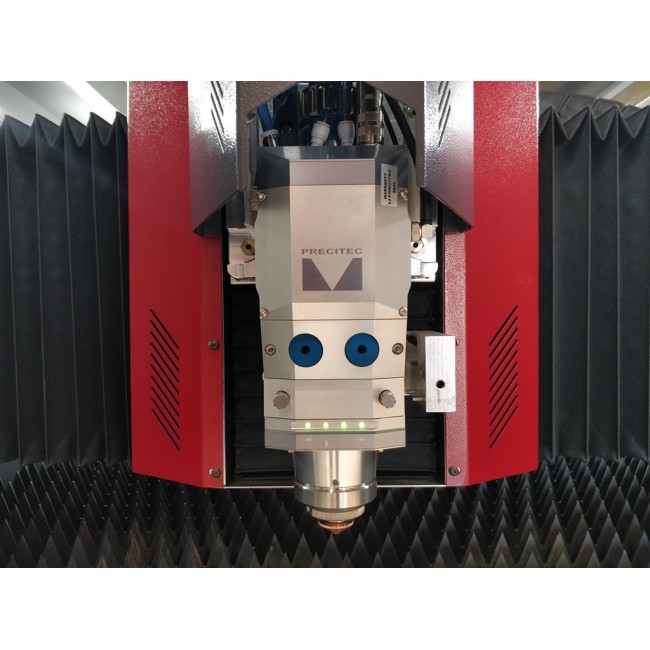

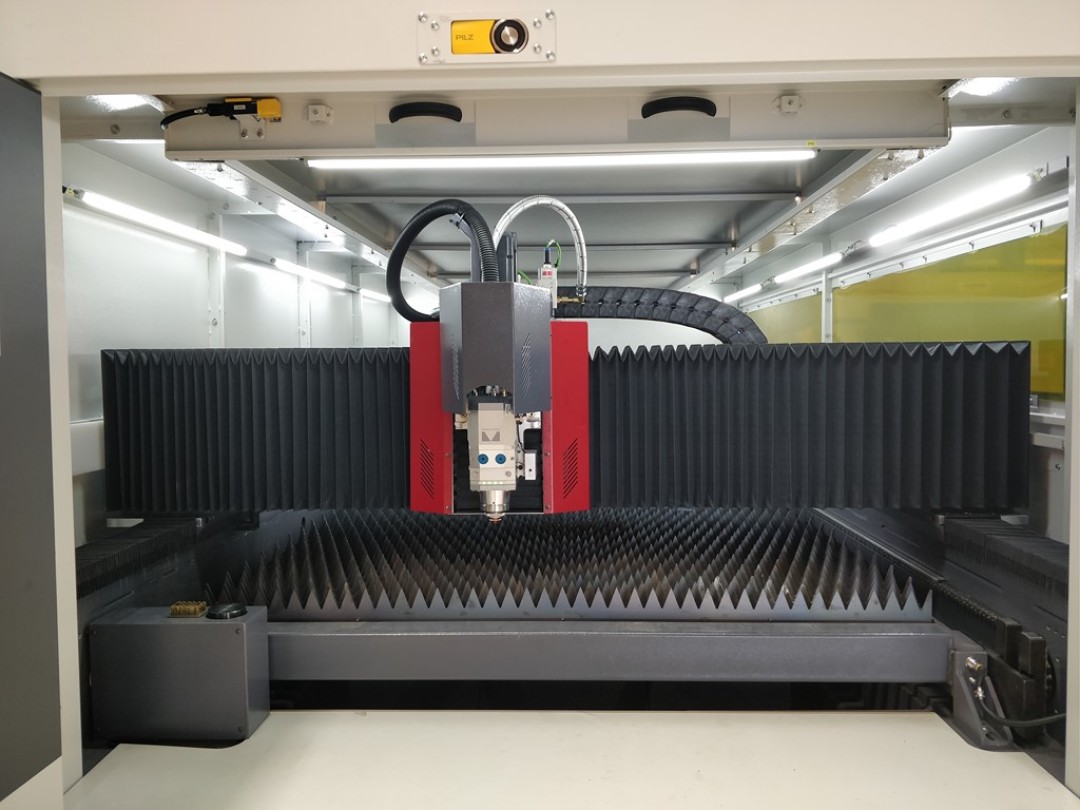

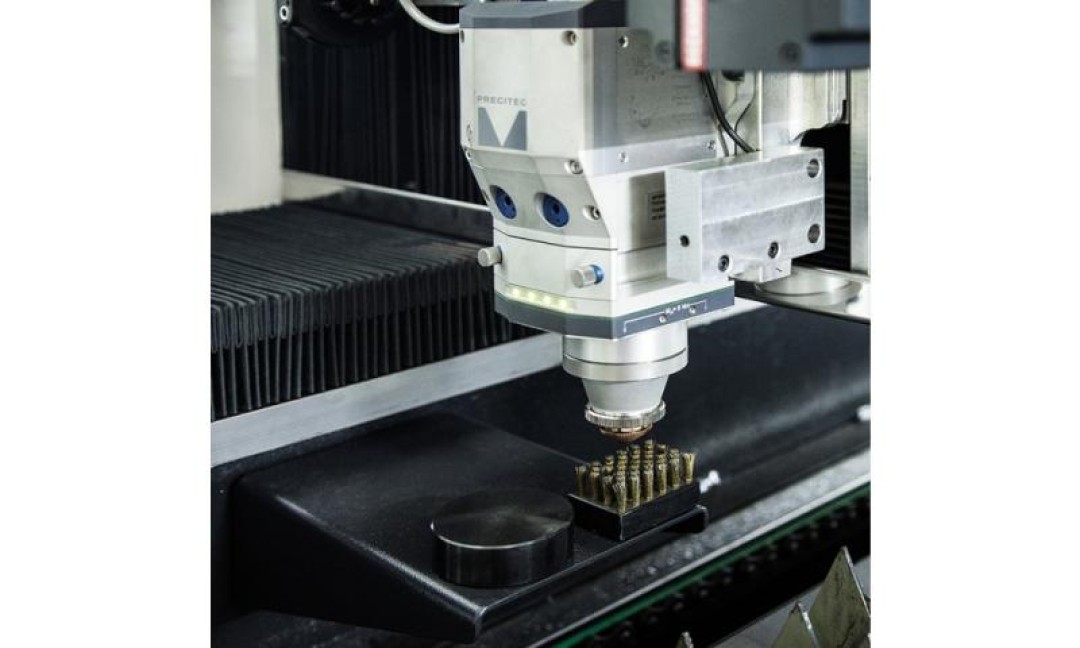

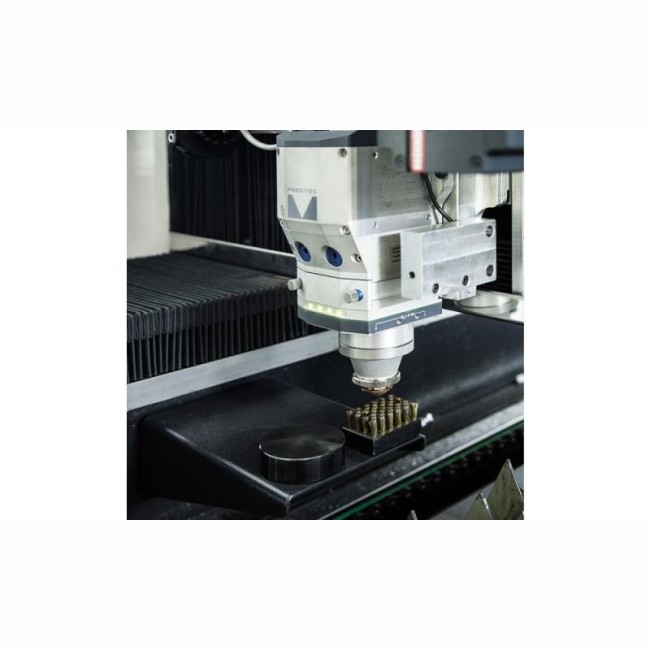

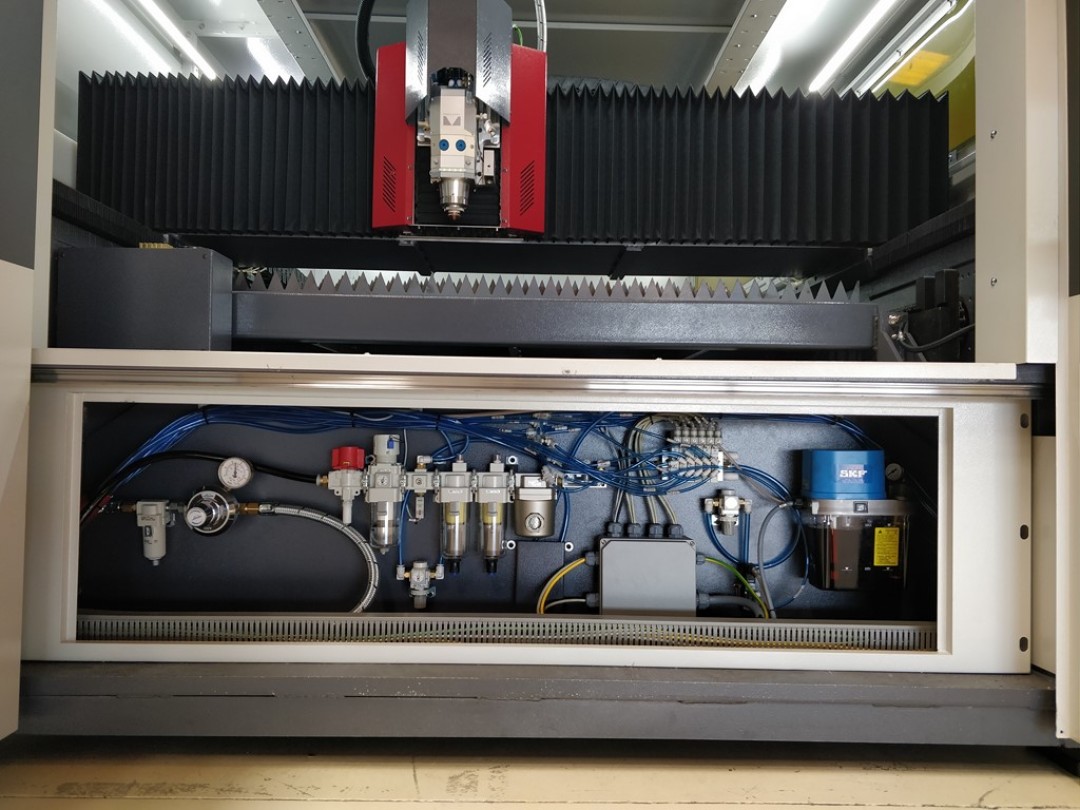

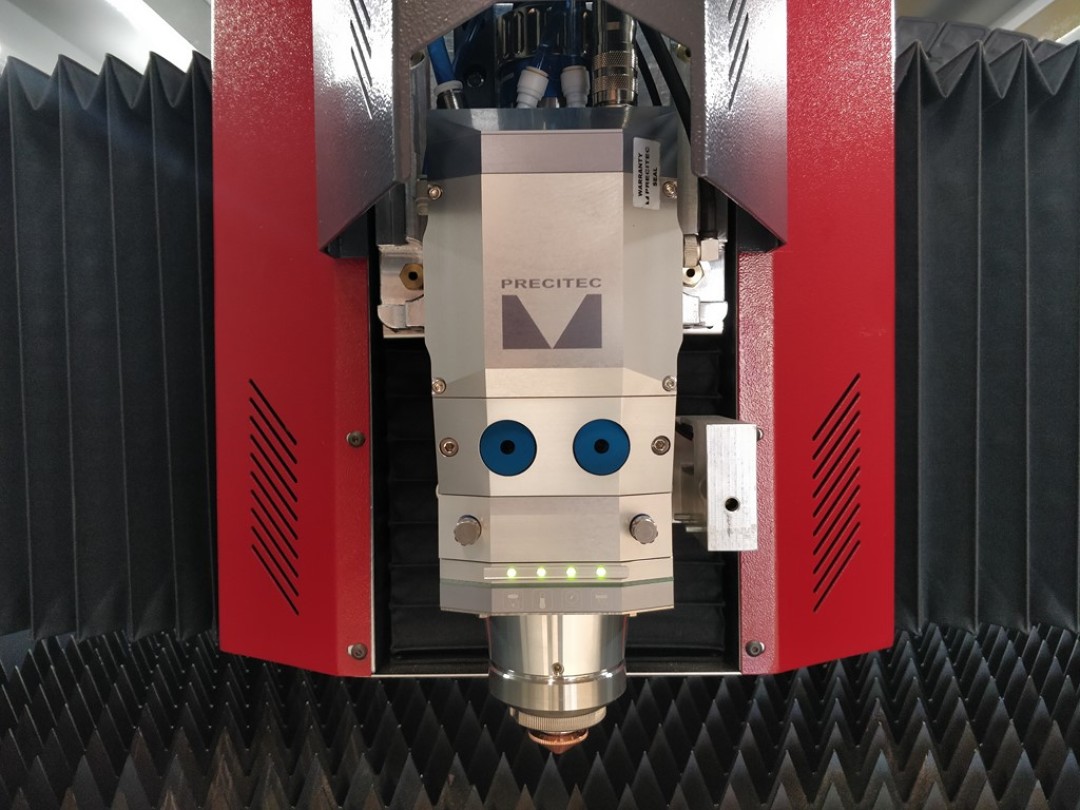

  • Tête de découpe Précitec Procutter avec autofocus
  • Logiciel d'imbrication LANTEK expert

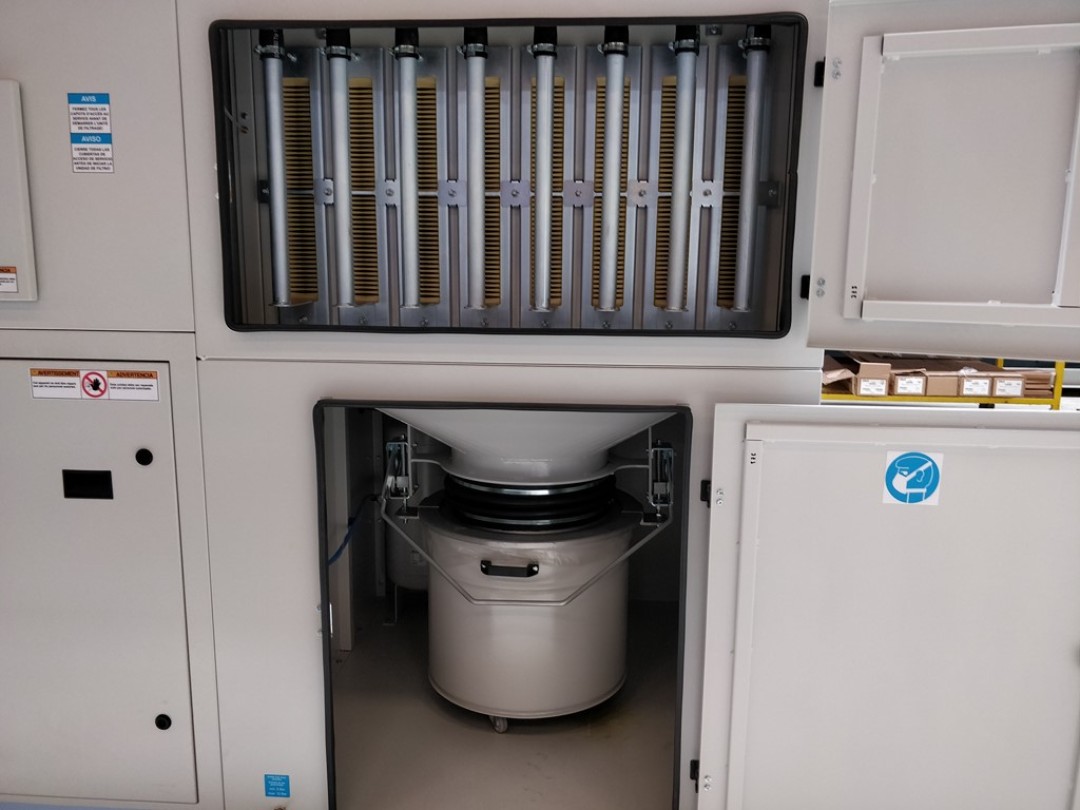

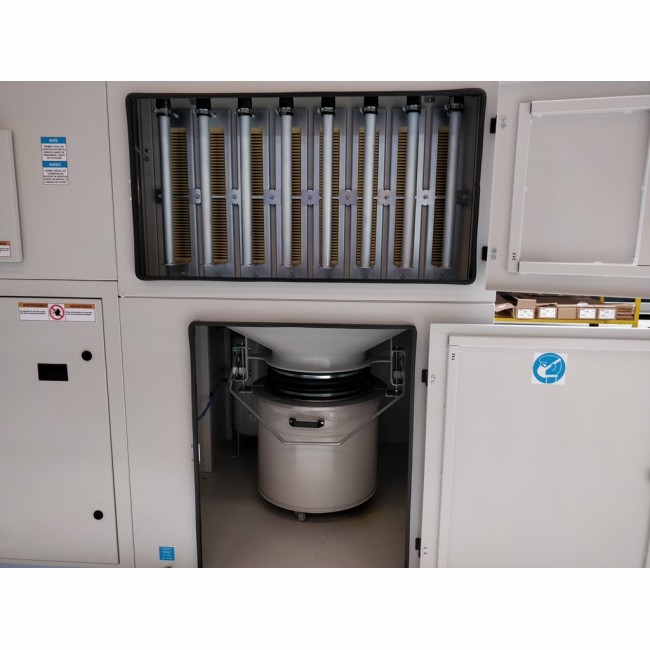

  • Systeme d'aspiration/filtration des fumées 4000m3/h avec decollematage

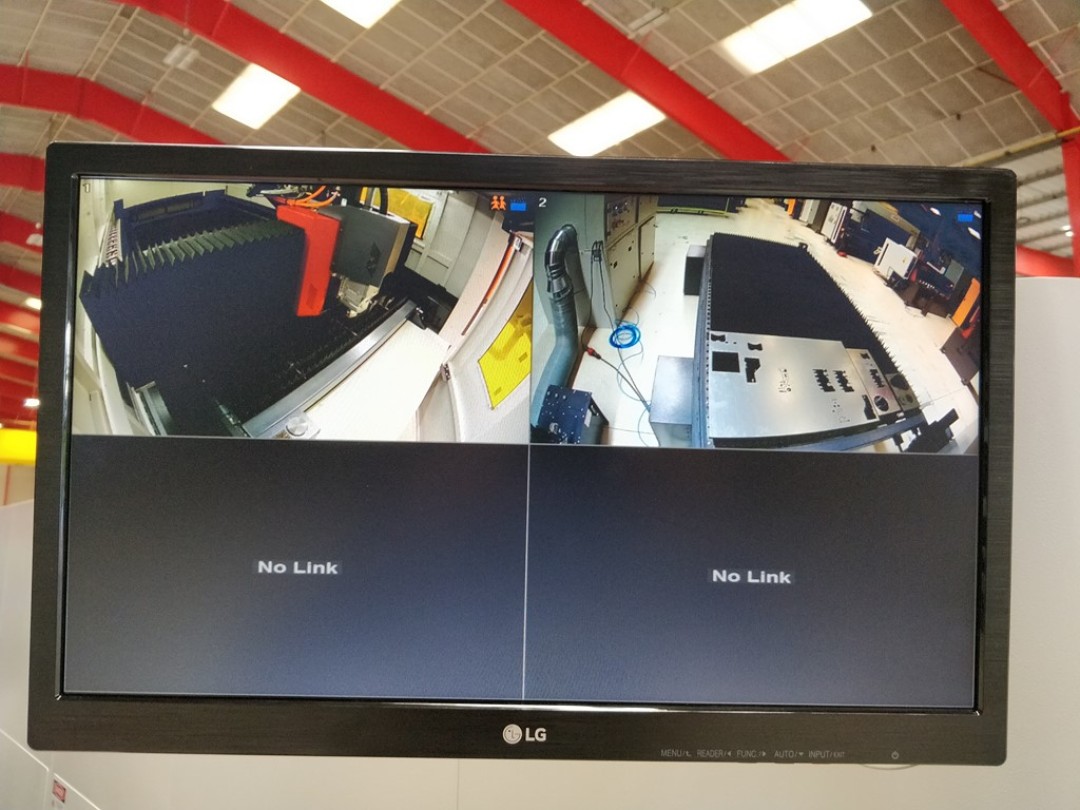

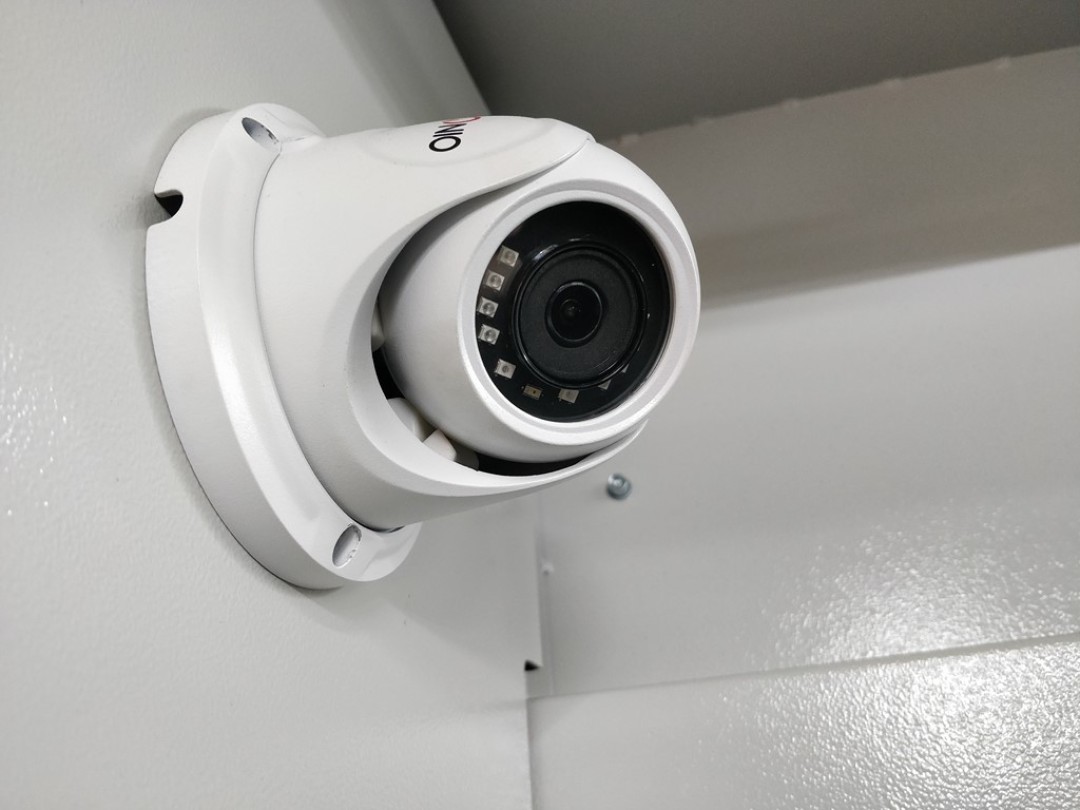

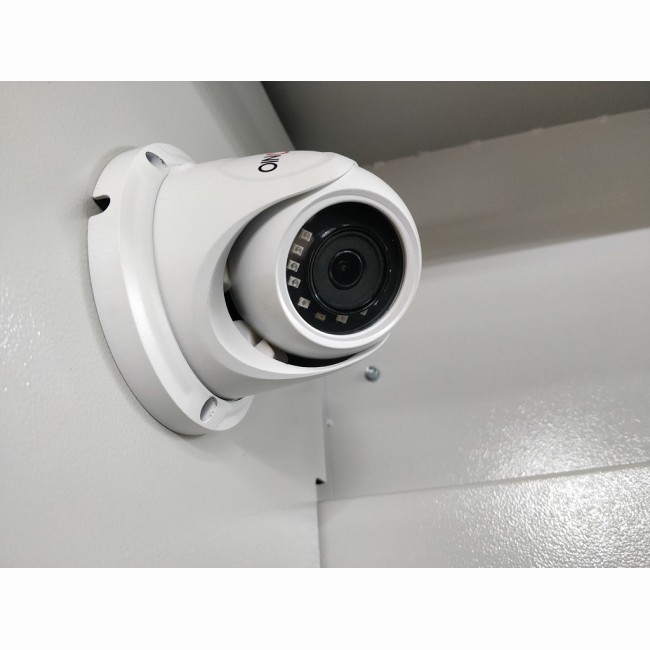

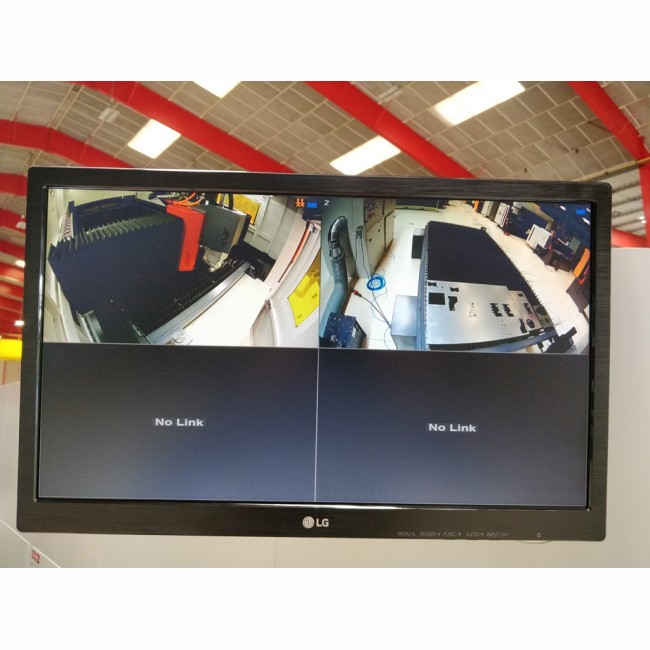

  • Double caméra de visualisation de la zone de coupe + deuxième table

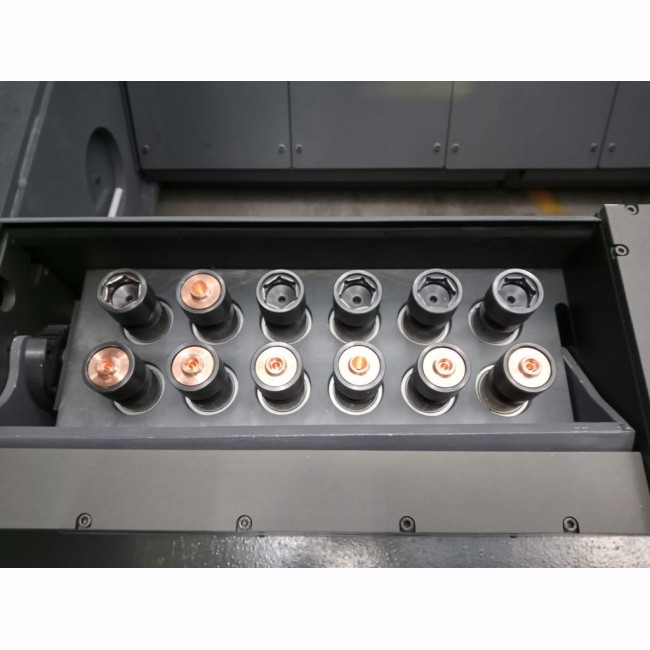

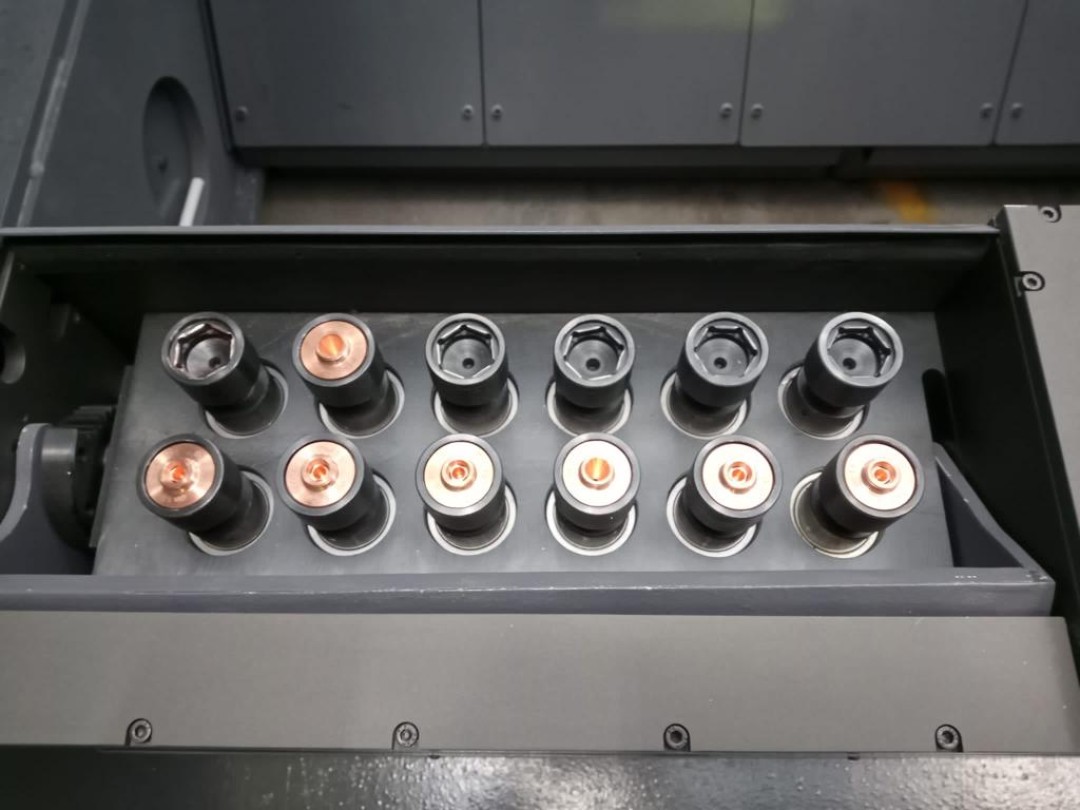

  • Changeur automatique de buses 12 positions

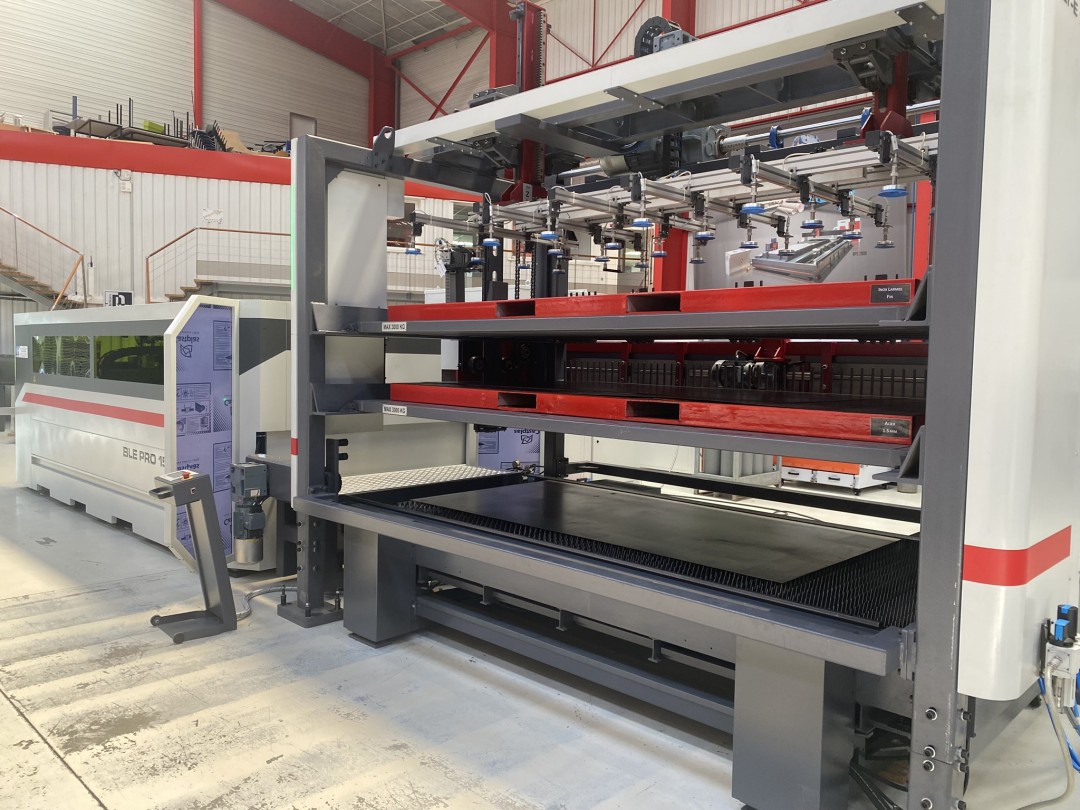

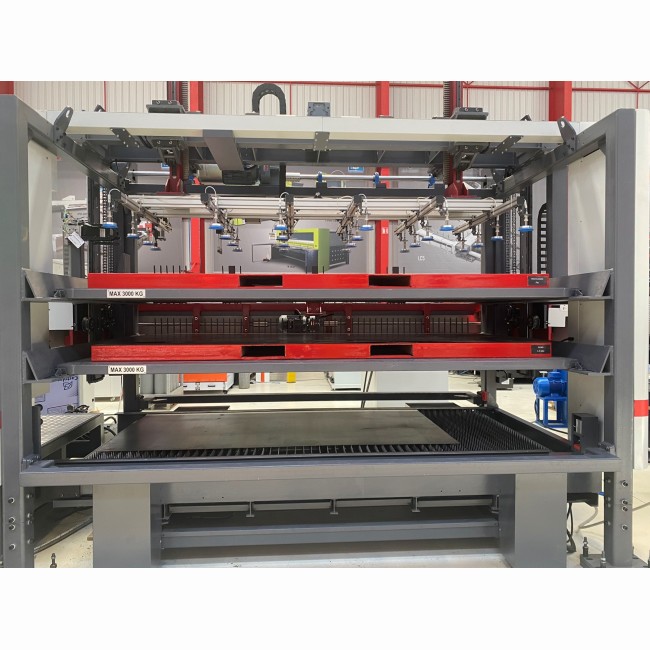

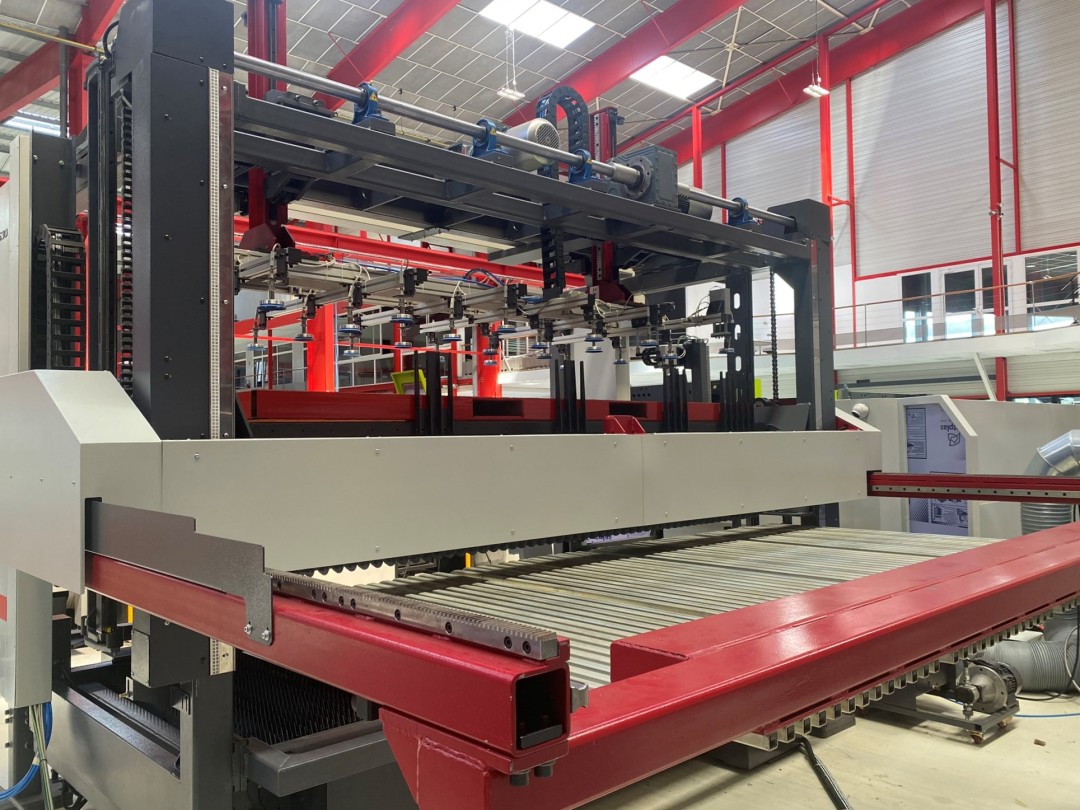

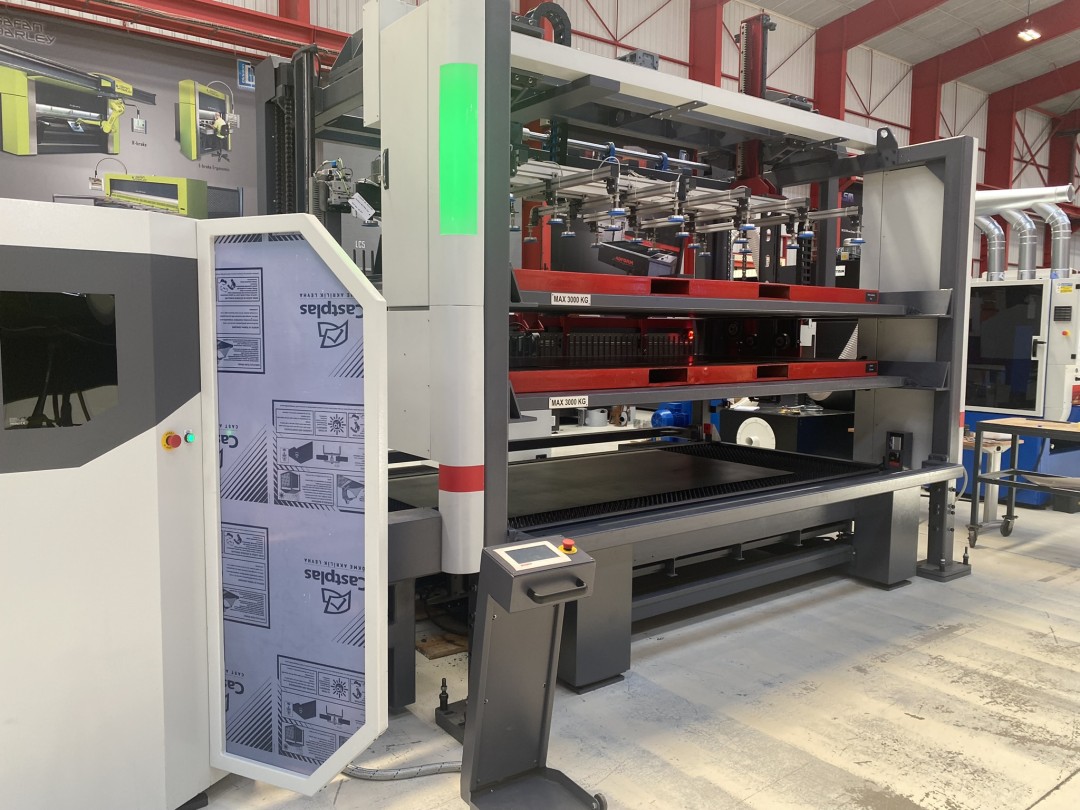

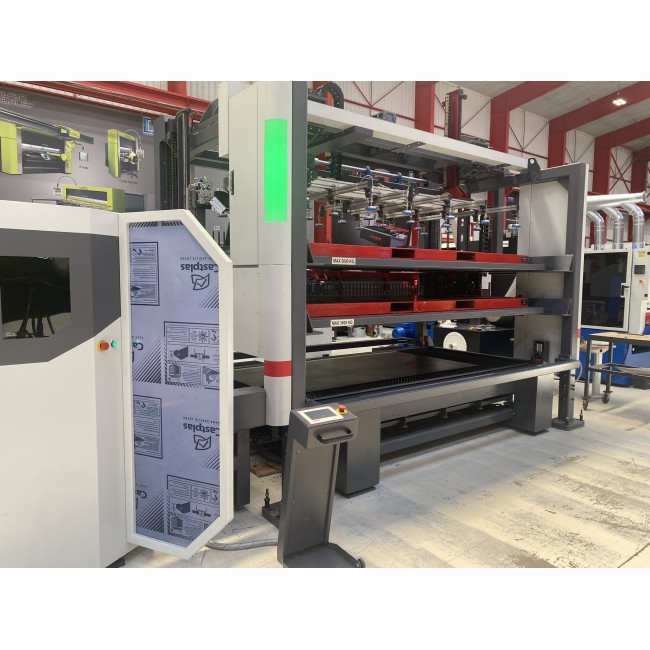

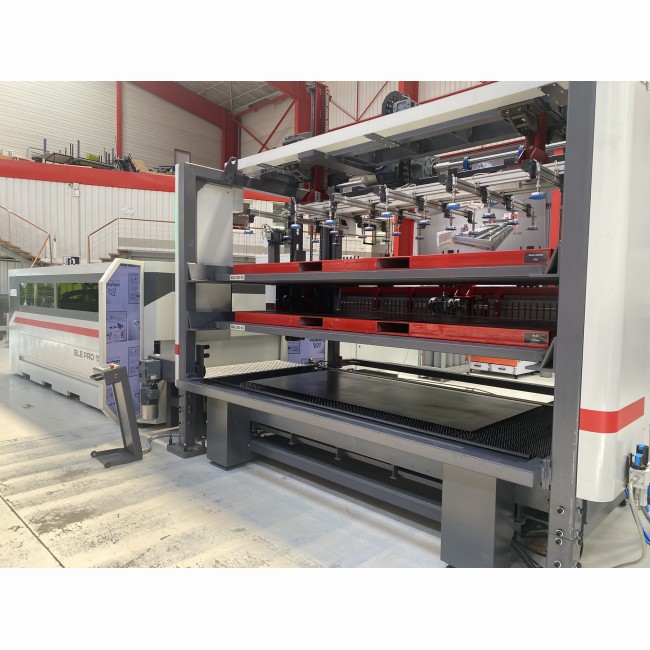

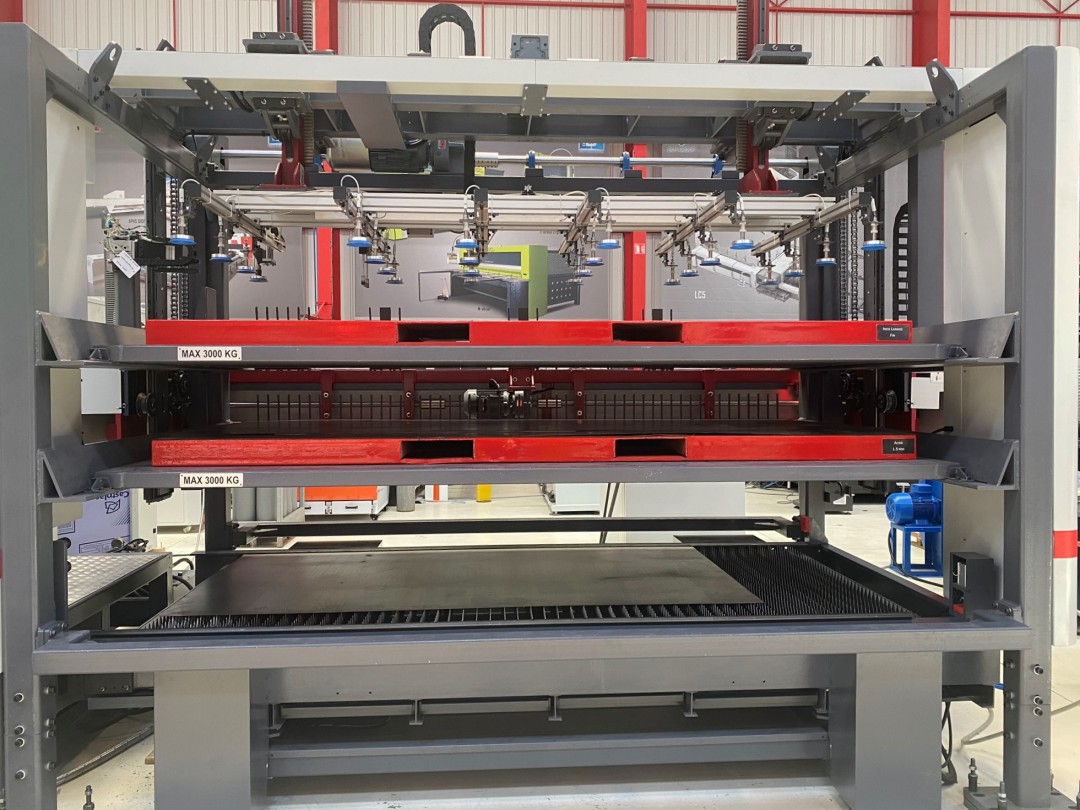

  • Tour de chargement / déchargement automatique
Épaisseur maxi (en finition parfaite) 1kW 2kW 3kW 4kW 6kW
ACIER 10mm 15mm 18mm 20mm 25mm
INOX 4mm 8mm 10mm 12mm 15mm
ALUMINIUM 3mm 6mm 8mm 10mm 12mm
CUIVRE 2mm 3mm 5mm 6mm 8mm
LAITON 2mm 4mm 5mm 6mm 8mm

Caractéristiques techniques

BLE PRO 1530BLE PRO 2040BLE PRO 2060
Format utile (mm)1524 x 30482032 x 40642032 x 6096
Puissance laser (kW)De 1 à 6De 1 à 6De 1 à 6
Tête de découpePrecitec ProCutter Thunder ou Procutter 2.0 ou Zoom 2.0Precitec ProCutter Thunder ou Procutter 2.0 ou Zoom 2.0Precitec ProCutter Thunder ou Procutter 2.0 ou Zoom 2.0
Longueur du focal (mm)150150150
Commande numériqueBeckhoff 18" écran tactile Window 10Beckhoff 18" écran tactile Window 10Beckhoff 18" écran tactile Window 10
MotorisationBeckhoffBeckhoffBeckhoff

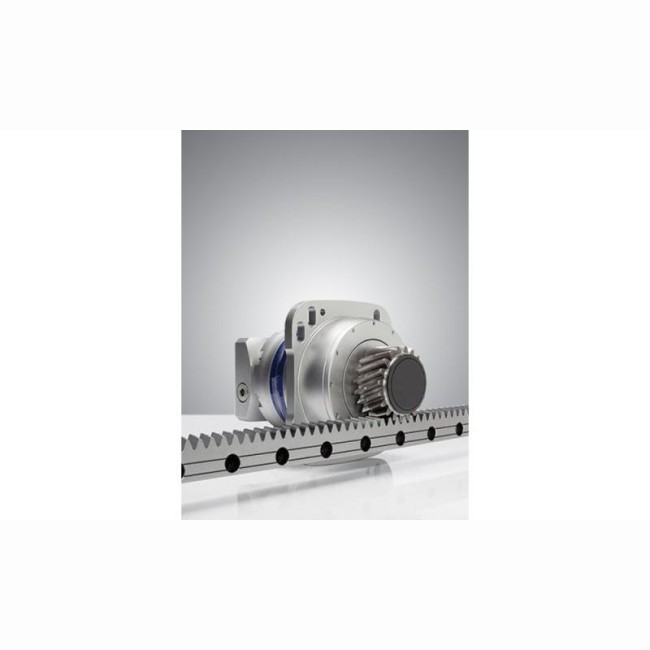

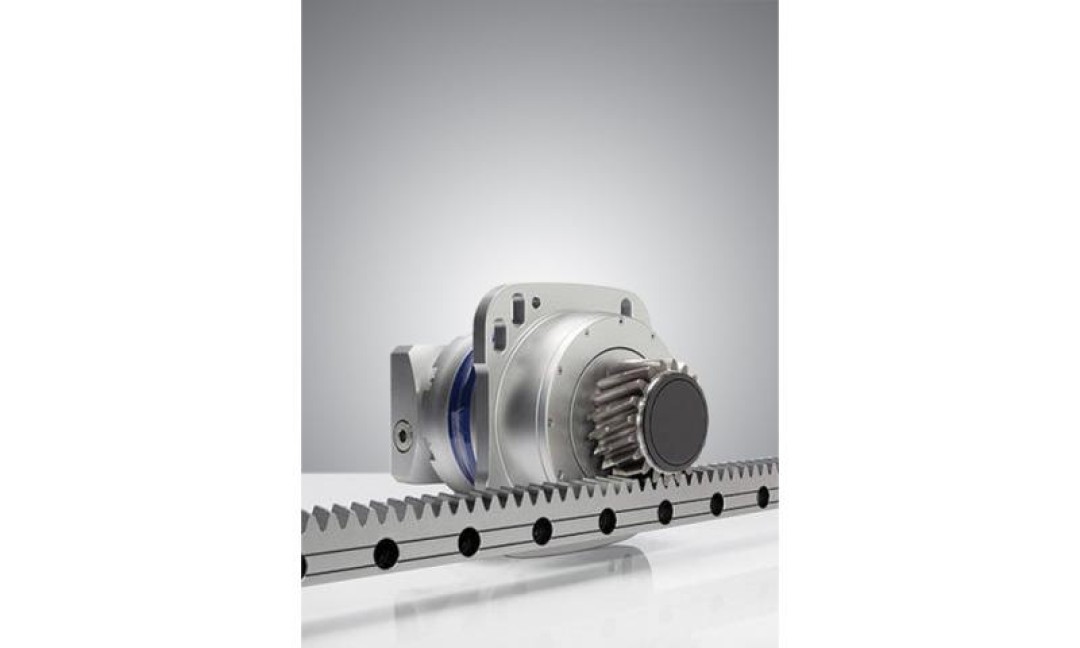

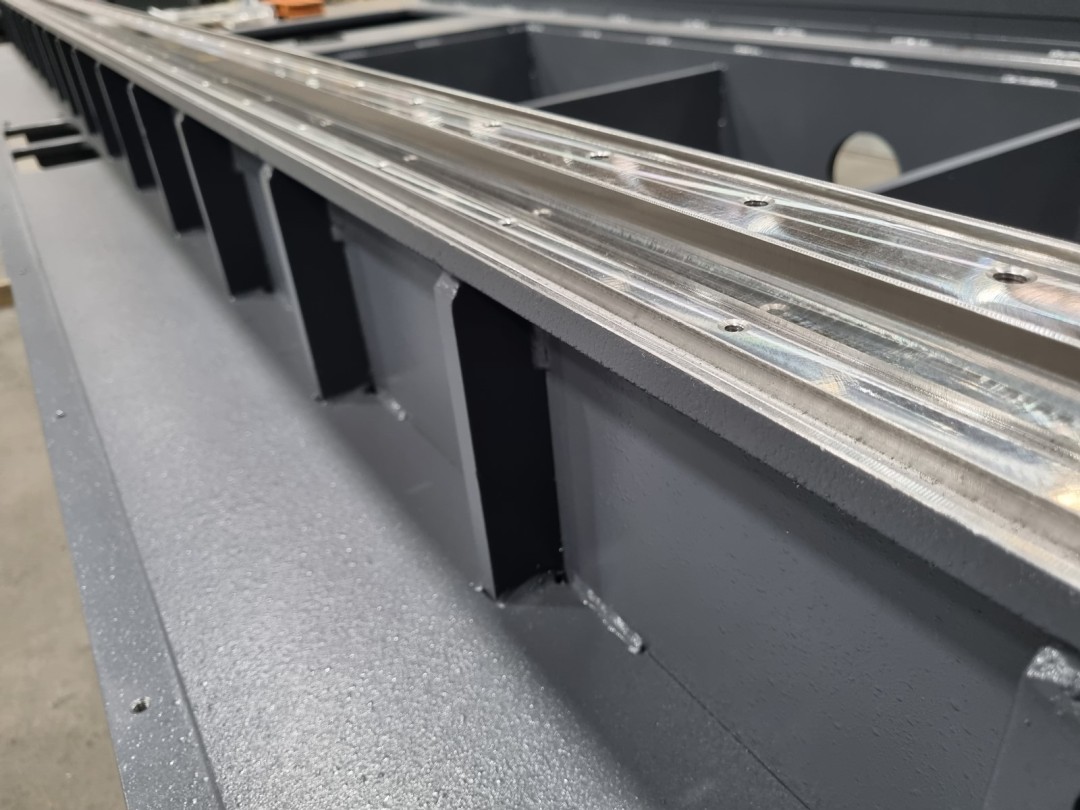

EntraînementPignon / Crémaillère (Wittenstein)Pignon / Crémaillère (Wittenstein)Pignon / Crémaillère (Wittenstein)
Déplacement rapide (m/min)95115115
Vitesse vecorielle (m/min)135145145
Accélération1,5 G (15m/s²)1,8 G (18m/s²)1,8 G (18m/s²)
Précision de positionnement (mm)+/- 0,03+/- 0,03+/- 0,03
Répétabilité (mm)+/- 0,05+/- 0,05+/- 0,05
Vitesse d'avance programmable (m/min)+ de 50+ de 50+ de 50

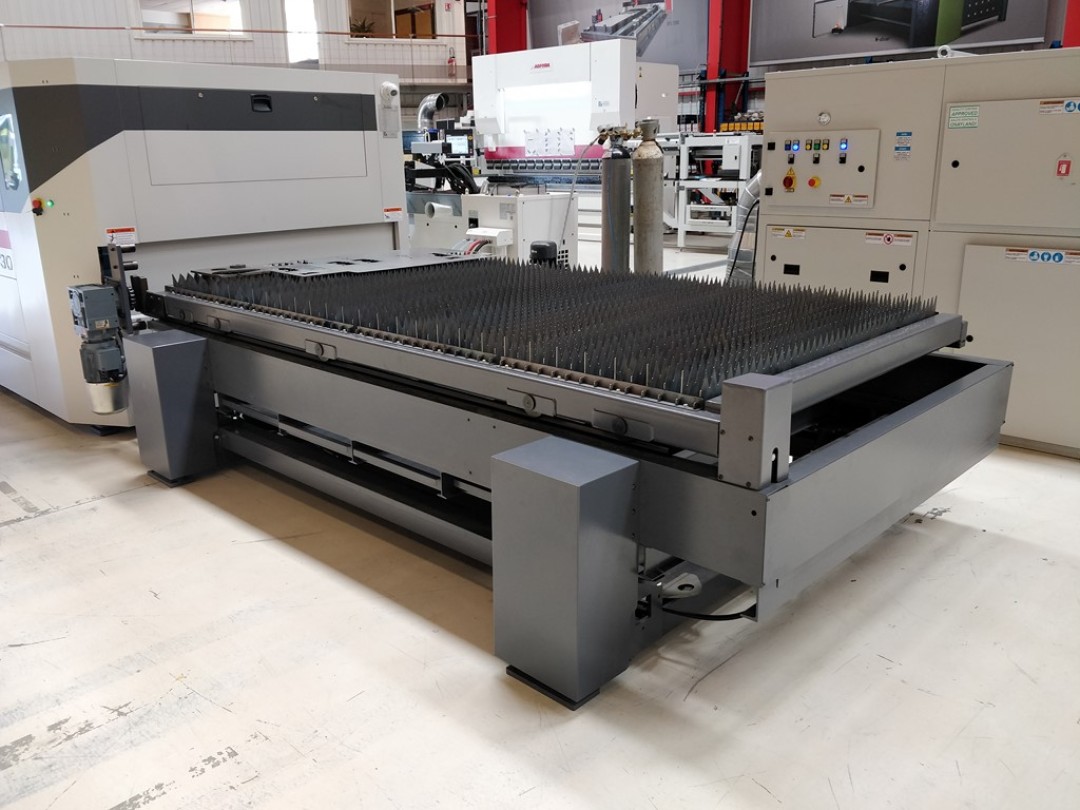

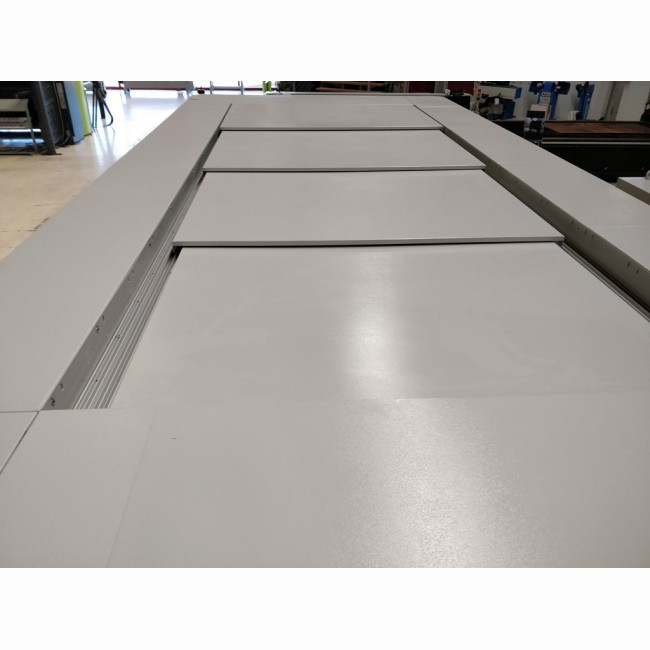

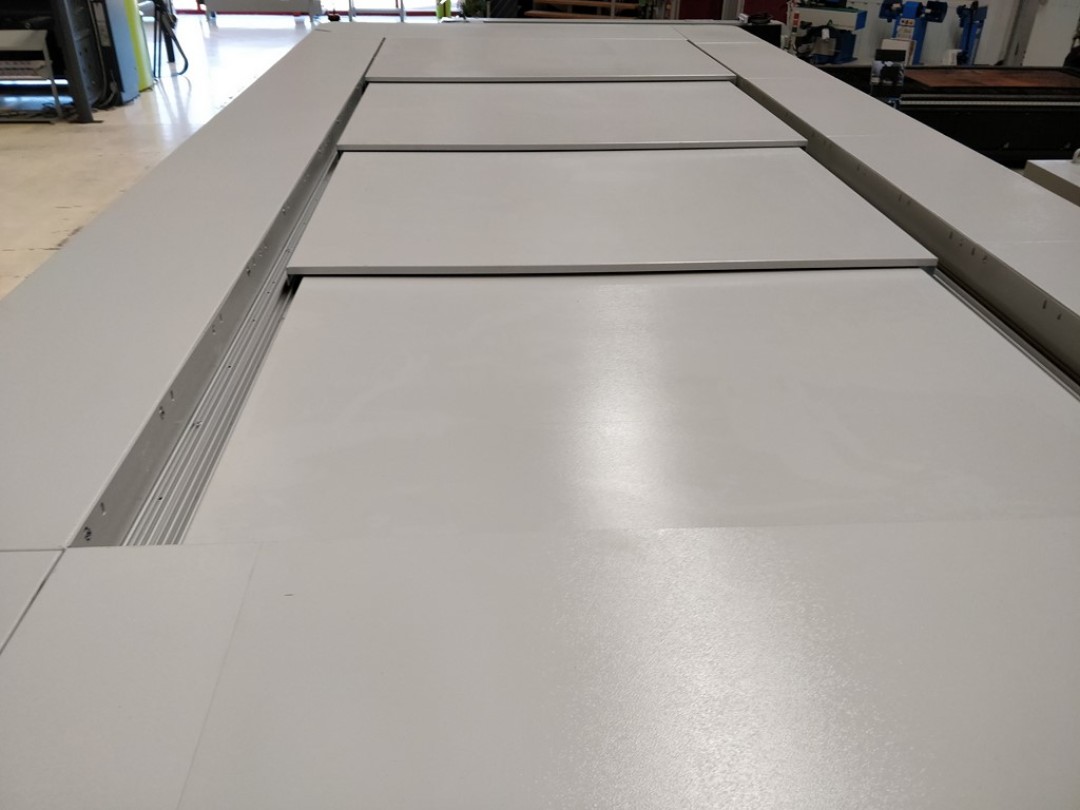

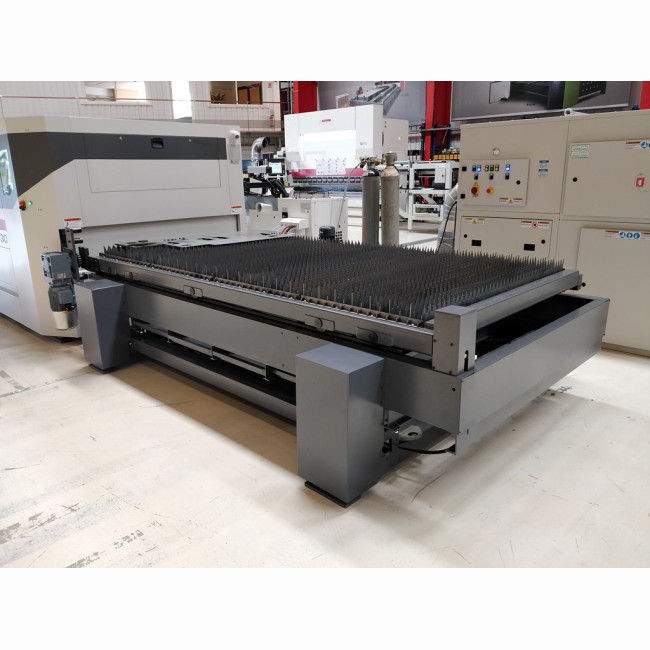

Chargement de la tôleDouble table motoriséeDouble table motoriséeDouble table motorisée
Charge maxi par table (Kg)125025003000
Logiciel de programmationLantek Expert Cut II / Metalix AutoNest PROLantek Expert Cut II / Metalix AutoNest PROLantek Expert Cut II / Metalix AutoNest PRO

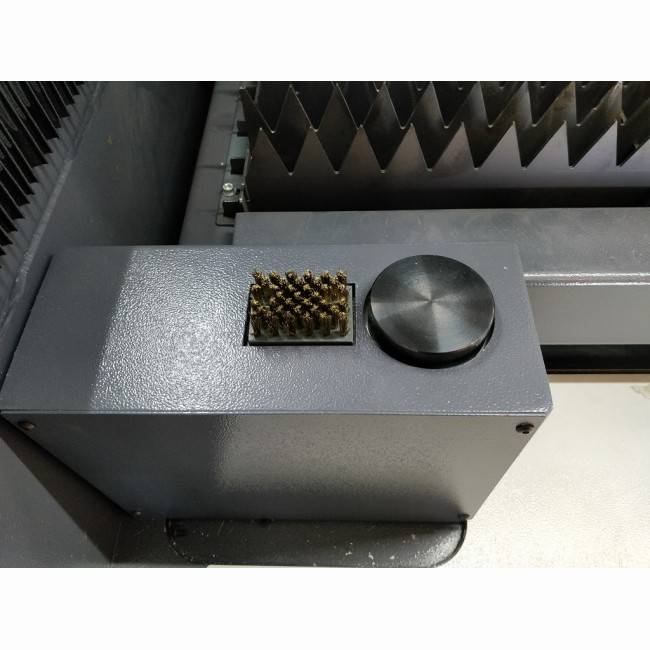

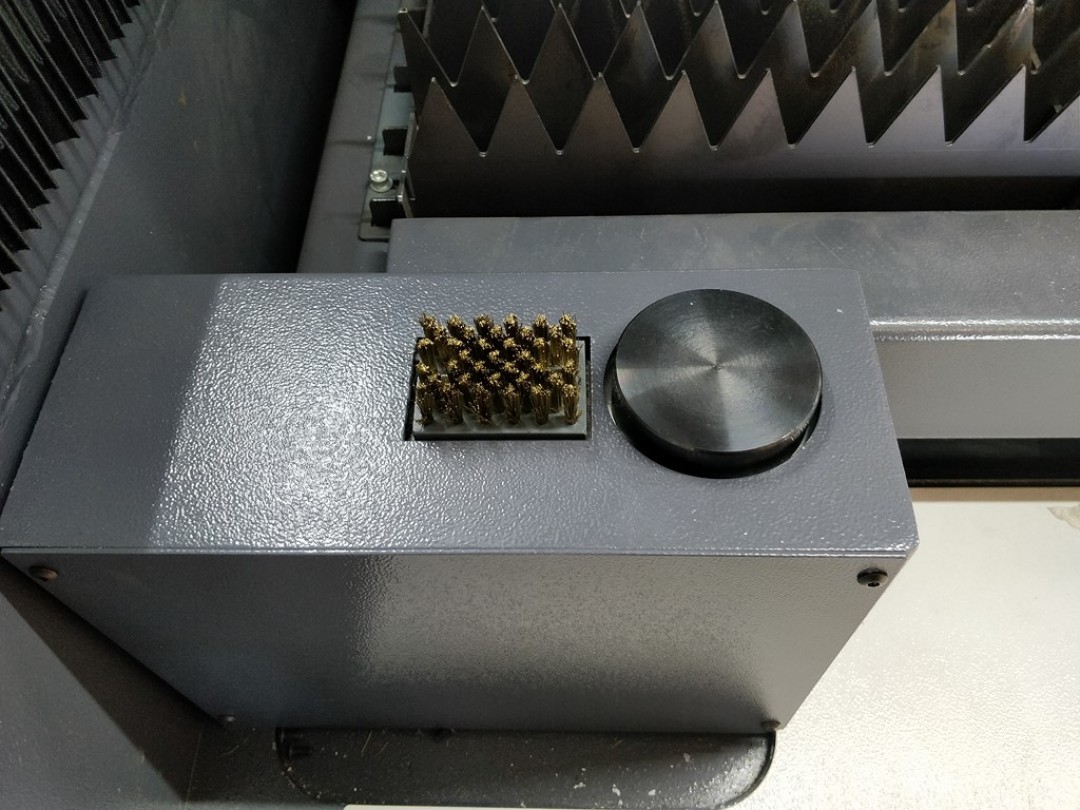

Nettoyage et calibration de la buseAutomatiqueAutomatiqueAutomatique
Centrale d'aspiration et de filtrationEn optionEn optionEn option
Dimension de la table (mm)1500 x 30002000 x 40002000 x 6000
